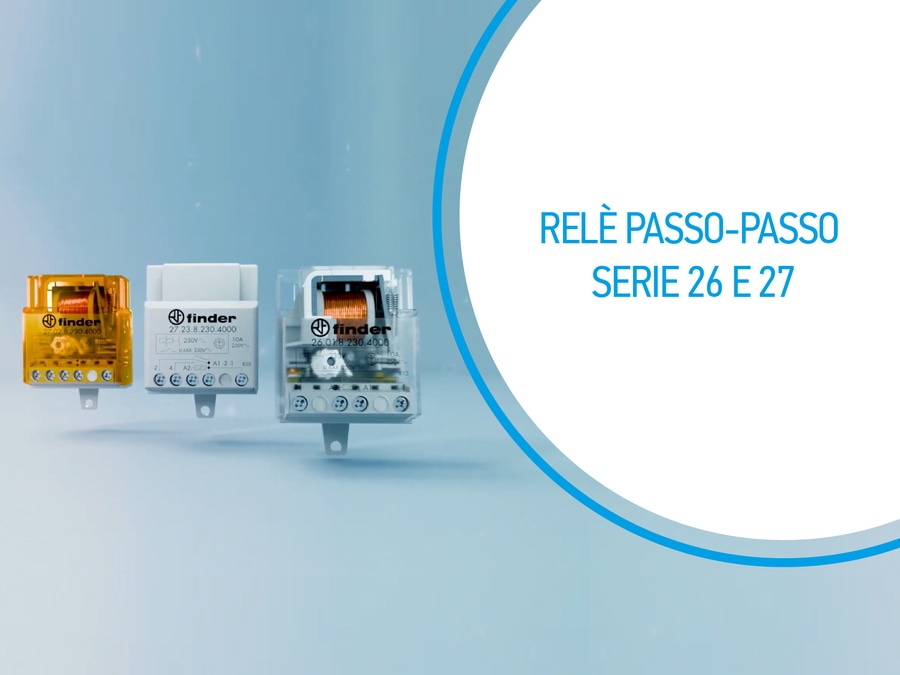

New versions of the 26 and 27 Series Finder step relays

Finder step relays catalog has been updated with more compact and quieter models

The new versions of the 26 and 27 Series step relays have been optimized to offer greater compactness and superior silent operation. These features make these devices the ideal choice for flush mounting (behind blanking plates), ensuring quick and functional installation.
While maintaining the reliability and functionality that have made them an industry benchmark, the new versions introduce significant aesthetic and performance improvements.
Impulse relays are available in two main configurations:

- 26 Series: Characterized by separate coil and contact circuits. This architecture is suitable for applications requiring clear isolation between the control circuit and the load circuit.
- 27 Series: Features a common ground (shared connection) for coil and contacts, offering a versatile solution for various system requirements.

Both series are designed for lighting management, allowing the control of a single light point or a group of lamps from multiple locations via push-buttons. This functionality makes them the optimal solution for residential and commercial automation, ideal for corridors, bedrooms, hotels, and large spaces.

The 27.2x EVO Model
The 27 Series introduces the 27.2x EVO model, a technologically advanced variant designed for modern installations. This relay integrates a coil power limiter, a key feature that allows the direct connection of up to 15 luminous push-buttons without the need for additional components. This integration simplifies wiring and prevents common issues related to residual current from illuminated buttons.

Common technical features across all models include:

- 1 or 2 output contacts, rated at 10 A.
- 7 versions with different sequences of operation.
- EVO Version (27 Series) with integrated coil power limiter.
- Compatibility with luminous push-buttons.
- Screw terminal connections.
- AC Coil: 12 – 24 – 110 – 230 V (depending on the model).
- Flush mounting behind blanking plates (retrofrutto).
- Cadmium-free contacts.

To learn more, visit the dedicated page on findernet.com
